UIPane example1

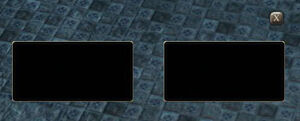

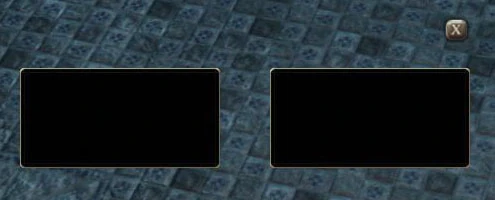

Two UI Pane in effect.Here two panes are arranged side by side within a scene. Additional objects can be arranged within such panes in turn to produce more complicated window layouts.

UIPane is an element of the NWN2's GUI interface which can be used as a container for other elements and arranged independently withn a UIScene. Sub elements of panes are positioned relative to the pane, they are used to create segments of the user interface windows.

A simple UI Pane element is defined as follows:

<UIPane name"PANEL_NAME" x=10 y=10 width=100 height=100>
...
     <!-- Put stuff in panel -->
...
</UIPane>

UIPane Attributes Edit

XML TagFieldVariableRangeDescription
<UIPane>namestringanyA simple container element, pane. Gives the element a unique name that can be referenced in scripts.
x/y integerscreen coordsDefines the position relative to the parent element.
width/heightintegerscreen coordsSet the dimensionst of the pane, can inherit from parent.
scalewithscenebooltrue/false Desc (?elements dimensions are scaled with the scene, allowing re-scaling?)
usescalarbooltrue/false Desc
updatebooltrue/falseMark the element for dynamic updates by script callback.
draggablebooltrue/falseAllow repositioning of the element.
ignoreventsbooltrue/falseDesc
hiddenbooltrue/false The element is initially invisible and a script will toggle its visibility.
tupplebooltrue/false Desc (tooltip related)
prototypebooltrue/false Desc (??Allows drag-drop functionality, must have event handlers set??)
capturemouseclicks booltrue/falseSets if the Pane should intercept mouse click events.
capturemouseevents booltrue/falseSets the Pane to intercept mouse-over type events.


Pane Element Example:Edit

The following XML code will produce two Panels which are aligned to the left and right of the scene.

<!-- A simple Pane UI demonstration
SCENE_PANE_TEST is the name of the scene, it is the name that scripts use to access this scene.
It is also refrenced in the *gui.ini files, for those scene elements that are created when you start the game
like the default menu or your hotbar.
I have edited the ingamegui.ini to include SCREEN_PANE_TEST=panetest.xml letting nwn know where to find this scene
should a script ask for it.
-->
<UIScene name="SCREEN_PANE_TEST" x=5 y=5 width=422 height=204 draggable=true idleexpiretime="0.5" />

	<!-- This is the left hand pane with a frame inside -->
	<UIPane name="MY_TEST_PANE1" x=ALIGN_LEFT y=ALIGN_CENTER
                width=200 height=100 capturemouseclicks=true>

               <!-- content to be contained or arranged within
                               the panes dimensions goes here -->
		<UIFrame name="TEST_PANE_BGRND1" x=ALIGN_LEFT y=ALIGN_CENTER
                         width=PARENT_WIDTH height=PARENT_HEIGHT
                         topleft="tp_frame_tl.tga" topright="tp_frame_tr.tga"
			 bottomleft="tp_frame_bl.tga" bottomright="tp_frame_BR.tga"
                         top="tp_frame_t.tga" bottom="tp_frame_b.tga"
		         left="tp_frame_l.tga" right="tp_frame_r.tga"
                         fillstyle="stretch" fill="tp_frame_bg.tga" border=5 />
        	</UIPane>


	<!-- This is the right hand pane with the other frame inside-->
	<UIPane name="MY_TEST_PANE2" x=ALIGN_RIGHT y=ALIGN_CENTER width=200 height=100
                capturemouseclicks=true>

			<!-- content to be contained or arranged within
                                       the panes dimensions goes here -->
			<UIFrame name="TEST_PANE_BGRND2" x=ALIGN_RIGHT y=ALIGN_CENTER
                                  width=PARENT_WIDTH height=PARENT_HEIGHT topleft="tp_frame_tl.tga"
                                  topright="tp_frame_tr.tga" bottomleft="tp_frame_bl.tga"
                                  bottomright="tp_frame_BR.tga" top="tp_frame_t.tga" bottom="tp_frame_b.tga"
				  left="tp_frame_l.tga" right="tp_frame_r.tga"
                                  fillstyle="stretch" fill="tp_frame_bg.tga" border=5 />

	</UIPane>


	<!-- Close Button -->
	<UIButton name="CloseButton" x=ALIGN_RIGHT y=ALIGN_TOP style="STYLE_CLOSE_BUTTON"
		OnLeftClick=UIButton_Input_ScreenClose()>
	</UIButton>

<!-- End of Scene -->
